MG Small Load Truck & Trailer Vibrators MG-80

Cleveland Vibrator's line of DC Small Load Truck & Trailer Vibrators have a reputation for promoting consistent material flow in spreaders and small hoppers.

Built to withstand the toughest applications, the MG-80 features a fully encased motor with an IP 66 rating, ensuring protection against dust and water ingress, even in the harshest environments. With a force output of 100 lbf and continuous duty rating, it guarantees maximum uptime and long product life, making it ideal for mobile equipment mounted outdoors.

Designed for snow and ice applications, the MG-80 excels at dislodging bridged salt in small hoppers and promotes consistent material flow in hoppers up to 1 cu. yd. (1000 lbs max). It operates flawlessly in temperatures as low as -25°F (-32°C), maintaining efficiency when you need it most.

*Please note: Operation of the vibrators outside of the temperature range labeled may be possible by reducing duty cycle. Please consult sales with the details of your application.

Permanently lubricated for minimal upkeep, this vibrator offers a low-maintenance solution without compromising on performance. Whether you're tackling winter challenges or ensuring material flow in small hoppers, the MG-80 is your trusted partner for reliability and durability.

Other models of our MG Small Load Truck and Trailer Vibrators include the smaller MG-60 LP and the larger MG-200. We also offer the MG-80 and MG-200 with comprehensive installation kits: MG-80 KitMG-200 Kit

Contact us now to learn how we can best suit your vibratory motor needs for replacement motors or new applications.




Side-by-side size comparison between the MG-60 LP and the MG-80

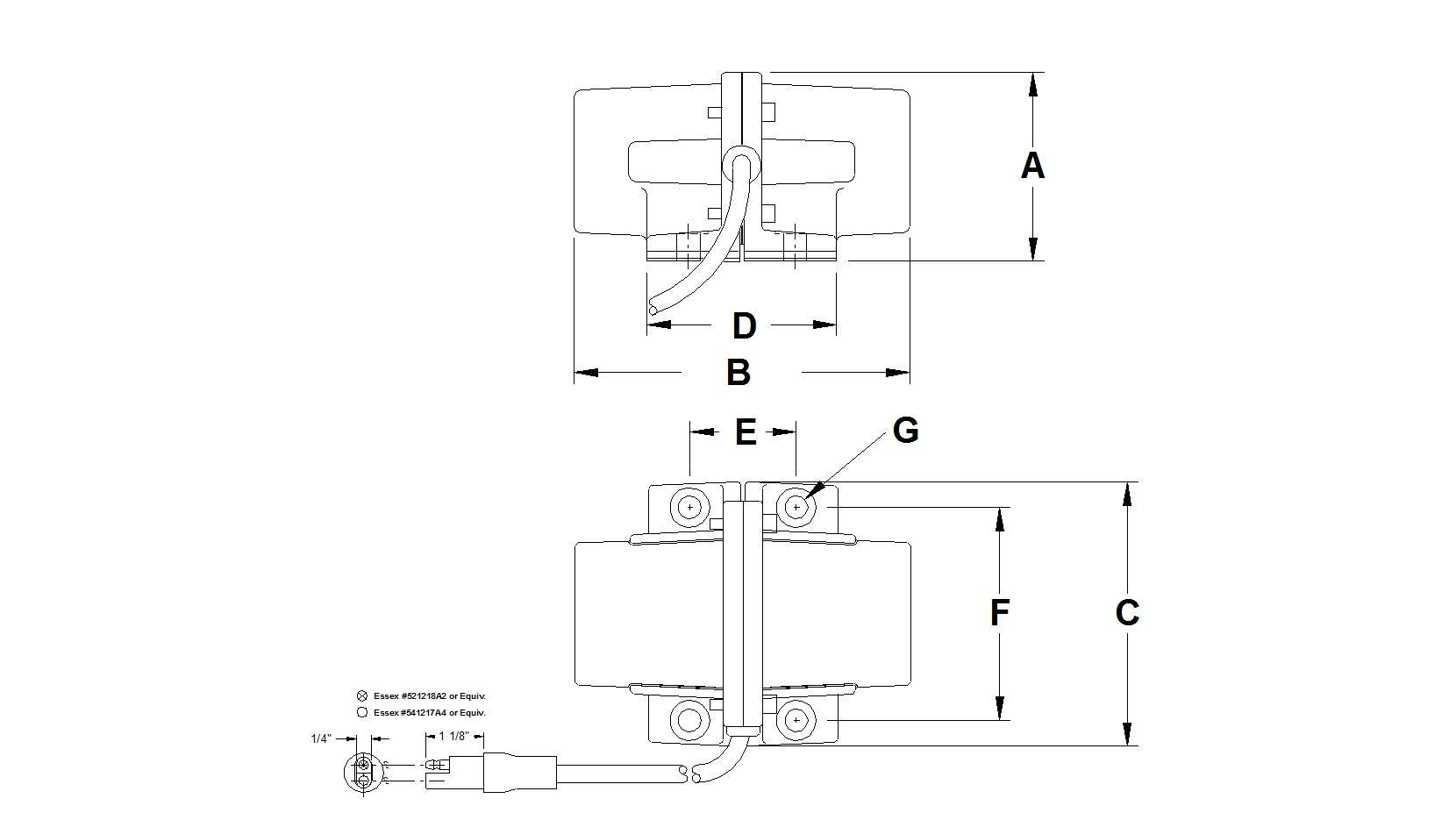

6000080

MG-80

A
3.6"
B
6.3"
C
5.0"
D
4.1"
E
2.0"
F
4.0"
G
0.425"

Weight

5.00 lbs

Force

100 lbf

Frequency

2900 RPM

Recomended Temp. for Cont. Operation

-25 F thru 125 F

Amp Draw @ 12 Volt

4

Recommended Cycle

Rated for continuous duty

Hopper Size

1 cu. yd. (1000 lbs. max)

Protection Rating

IP 66

Lead Cord Length

48"

The MG-80 kit includes the following: (1) Vibrator Mounting plate w/bolts (1) In-cab toggle switch (1) Toggle switch mounting bracket (1) 25’ of wire (2) #8 ½” L self-tapping zinc screws (1) In-line fuse holder w/wire leads and 20A fuse. (4) Insulated female spade connectors (2) Insulated male spade connector (2) Nylon insulated butt splice (1) 5/16” rubber firewall grommet (6) plastic Zip ties
