Looking to compact or densify bulk materials in your automated process or semi-automated process but have limited space to work with?

Model GT-O Low Profile Vibratory Grid Top Tables from Cleveland Vibrator settle and packs material to lower cost of operations in quality testing, production, packaging and shipping and feature a Grid Top surface for lifting the container or material before vibrating. The Cleveland Vibrator Company's GT-O Low Profile Grid Top Vibratory Table model is ideal for automatic and semi-automatic packaging and filling lines that use roller conveyor systems. This table model is commonly installed at the filling of compaction station of an in-line conveyor system.

Diagram Explanation: The load is first rolled into position over the vibrating station. Air mounts lift the load above the rollers and once in the top position, vibration is applied. After the vibration sequence is complete, the load is lowered back onto the rollers for evacuation and now ready for the process to be repeated on the next container.

Common Applications Include:
  • Settling material in cartons, drums, kegs, and bags before package sealing and shipping
  • Removal of air and voids from poured concrete and refractories
  • Testing product quality and fatigue
Benefits of the GT-O Vibratory Table Include:
  • Low profile design saves space in compact areas
  • Reduction of manual efforts in production or packaging
  • Improved production rates and product quality
  • Increased quality and consistency in molded and settled products
  • Elimination of broken product and/or broken package rejections
Features and options of the GT-O Vibratory Table include:
  • Choice of mounts for vibration isolation
  • Controls for vibration intensity, force and frequency
  • Deck customizations, such as roller balls, for fitting conveyor lines
  • Designs for loads over 10,000 lbs available
GT Grid Top Tables can fit with 3 different types of roller sections:
  • CDLR Chain Driven Live Roller
  • Standard Conveyors
  • Gravity Rollers

Click on the button at left to request a quote, or contact us now for more information on our full line of vibratory tables.

Additional Resources

Related Content
Glen-Gery Landmark Stone Application Report

Glen-Gery Landmark Stone Application Report

Glen-Gery Landmark Stone improves production throughput with Vibratory Belt Conveyor Table (BT)
Cleveland Vibrator Vibratory Equipment Products Overview

Cleveland Vibrator Vibratory Equipment Products Overview

Click here to view & download Cleveland Vibrator's One-Page Vibratory Equipment Products Offering.
Choosing the Proper Vibratory Table Enhances Product Compaction & Cost Savings for Numerous Bulk Handling Applications

Choosing the Proper Vibratory Table Enhances Product Compaction & Cost Savings for Numerous Bulk Handling Applications

Some materials can achieve 25% to 30% compaction if the vibration is applied correctly and the vibratory table is desig...

Vibratory Table Equipment Catalog

Vibratory Table Equipment Catalog

Catalog for Cleveland Vibrator Company Air or Electric powered Vibratory Tables
Grid Top Weigh Table (GWT)

GWT Grid Top Vibratory Weigh Table

Model GWT operates just like a standard grid top vibratory table, but includes weighing equipment for automated or semi-automated packing lines.
GT Series

GT Grid Top Vibratory Table

Grid Top Vibratory Tables integrate easily into a production line. Units lift containers above the conveyor, vibrate as necessary, then return the container to the rollers.
Bulk Material Settling & Packing

Bulk Material Settling & Packing

Cleveland Vibrator Company offers a full range of industrial vibrators and equipment for settling and packing materials in drums, containers, packages, molds and forms.

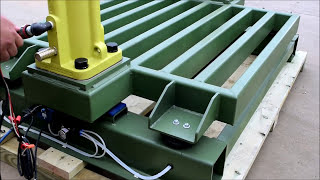

GT-O Air Powered Grid Top Vibratory Table
