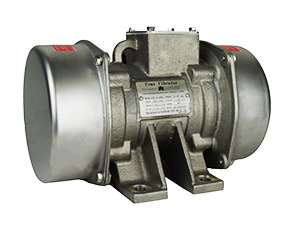

Stainless Steel Rotary Electric Vibrators KSE-3-4B

The Cleveland Vibrator Co. & Uras Techno® KSE-3-4B, 3-Phase 4-Pole Stainless Steel Rotary Electric Vibrator feature a force of 674 Lbs at frequency of 1800 RPM.  Rugged construction and environmentally protected design makes these units ideal for dusty indoor environments or outdoor operation on packing or settling tables, screeners, feeders or as flow aids on bins and hoppers. These food grade motors for applications in food processing, pharmaceuticals and chemical industries (to name a few) come with a 3 year warranty.

DURABLE - IP66 fully enclosed construction (TENV) and continuous duty rating provide for a long service life in harsh conditions Most units have permanently greased bearings for reducing maintenance requirements.

SAFE units run at average of 58 dbA at four feet

VERSATILE - each unit has adjustable force outputs with most units being fully adjustable from 0%-100% force output rather than being limited to pre-set stop points.

EASY - all units come with Grade 5 mounting fasteners as well as a pre-installed, anti-vibrational lead cable

Click the button at left to order online or contact us to learn how our industrial vibrators can best suit your needs.


6540034

KSE-3-4B

A
6.1" (15.49 cm)
B
5.9" (14.98 cm)
C
3.15" (8 cm)
D
0.39" (0.99 cm)
E
3.3" (8.38 cm)
F
7.1" (18.03 cm)
G
1.37" (3.47 cm)
H
1.57" (3.98 cm)
I
10.43" (26.48 cm)
J
7.08" (17.98 cm)
K
4.33" (10.99 cm)
L
2.16" (5.48 cm)

Weight

37.00 lbs

H.P.

0.17

Max Force

674 (3 kN)

Amp Draw @ Volts 230

0.76 (0.51)

Protection Structure

IP66
