Turbomite CVT-P Series Turbine Vibrators CVT-P-1

CVT-P Series

Turbomite CVT-P Series Turbine Vibrators CVT-P-1

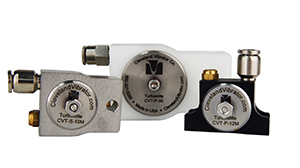

The Cleveland Vibrator Co. CVT-P line of pneumatic turbine industrial vibrators feature Acetal plastic and laser etched #304 stainless steel construction. Our turbine design is unparalleled in efficiency with optimal force-to-weight and force-to-air consumption ratios 2x to 4x better than competitors and remarkably low noise levels.

DURABLE - ultra efficient use of air for force production make these units last long, even in continuous duty

SAFE - turbine design produces virtually no noise while pneumatic power allows for operation in hazardous areas

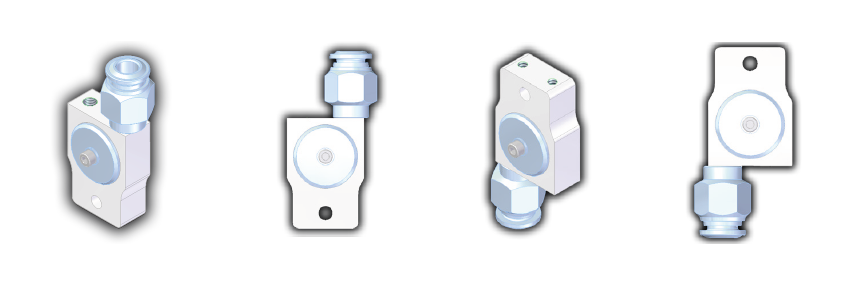

VERSATILE - design allows for start and run at low pressure and mounting at any angle on your bins, hoppers, chutes, feeders and tracks.  A wide variety of force outputs from 7 lbs. to 146 lbs. make them ideal for precise small jobs on materials between 25 lbs. and 1000 lbs.

EASY - comes with mounting fasteners for a quick set-up

Click the button at left to order the turbine vibrator that your operation requires, or contact us now to learn how our industrial vibrators can best suit your needs.



CVT-P-1

A
1-1/4" (3.2cm)
B
7/8" (2.2cm)
C
23/32" (1.8cm)
D
3/16" (.48cm)
E
5/32" (.39cm)
F
#10-32 UNF
G
#10-32 UNF
H
#6-32 UNF

Weight

0.05 lbs

Unbalance

.001 in-lbs (.0015 cm-kg)

AIR CNSMP @ 80 psi ; 5.4bar

.81 cfm ; 22.8 lpm

FREQ. @ 80 psi ; 5.4bar

20,000 VPM

Force @ 80 psi ; 5.4 bar

11.4 lbs
